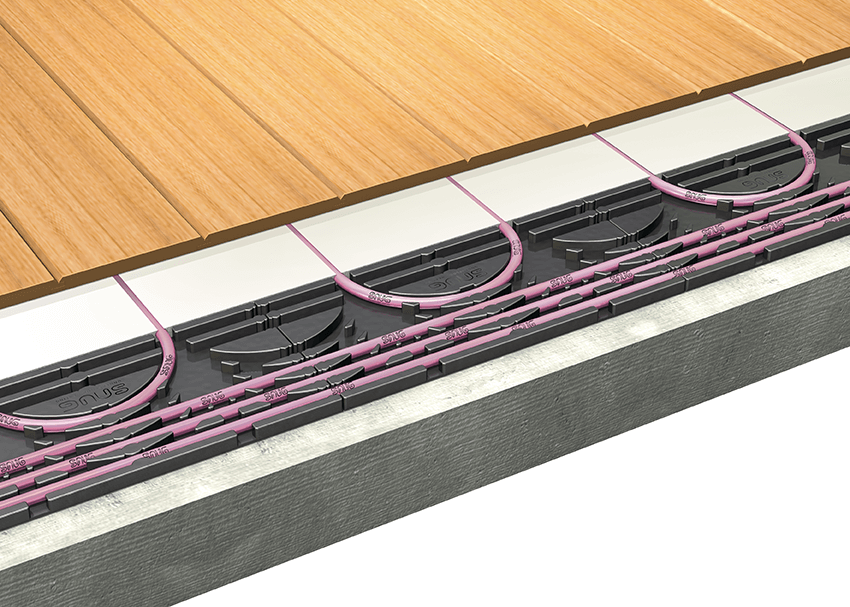

How to Install Engineered Wood Flooring Over Low-Profile UFH Trays & Overlay Systems

Low-profile underfloor heating has changed significantly in recent years. Flooring installers are increasingly working over routed XPS and EPS panels, aluminium-faced overlay boards, castellated trays, structural heating decks and electric foil systems rather than conventional pipes buried within a deep screed.

These systems are excellent for renovation projects where floor height matters, but they also introduce a new challenge: the heating panel itself is not automatically a suitable subfloor for engineered wood flooring.

Some systems must be encapsulated in fibre-reinforced smoothing compound. Some include a structural cover board. Some allow an approved floor to be bonded directly. Others are designed only for floating flooring.

This guide explains how to approach modern UFH trays and overlay systems before installing engineered plank or herringbone flooring.

What Is a Low-Profile UFH System?

A low-profile UFH system places heating pipework or an electric heating element close to the finished floor rather than burying it deeply within a conventional screed.

This reduces overall floor build-up and normally improves response time.

Common systems include:

• Aluminium-faced routed XPS or EPS panels.
• Coated routed insulation boards.
• Castellated self-adhesive trays.
• Wood-fibre routed panels.
• Cement-particle heating boards.
• Electric foil heaters.
• Electric cable systems embedded within smoothing compound.

Why These Systems Need More Care with Wood Flooring

A conventional screed creates a continuous mineral surface.

A routed UFH panel may instead contain:

• Soft insulation.
• Foil surfaces.
• Open pipe channels.
• Joints between panels.
• Different compressive strength from the structural subfloor.
• Areas of pipe and areas without pipe.

A wooden floor installed above this construction still needs consistent support and, for bonded floors, a reliable surface for the adhesive.

Four Main Types of Overlay System

Why There Is No Universal 6mm Rule

We frequently see advice that low-profile UFH should simply receive “6mm fibre-reinforced levelling compound”.

Six millimetres is a valid specification for some systems, but it is not universal.

Why Is the Load-Spreading Layer Important?

Where the system requires encapsulation, the compound is doing much more than making the floor look smooth.

It can provide:

• A continuous receiving surface.
• Load distribution across routed panels.
• Support above pipe channels.
• Protection for the heating pipe.
• More consistent heat distribution.
• Reduced hot and cold striping.
• A continuous substrate for wood-floor adhesive.
• Better support beneath short parquet blocks.

Ambiente specifically requires its pipework to be completely encapsulated because the compound helps distribute heat and prevents the final flooring contacting the routed panel directly.

Foil-Faced XPS & EPS Panels

These are probably the most difficult low-profile systems to generalise about.

Two aluminium-faced panels can look almost identical but use different:

• Foil coatings.
• Foam densities.
• Panel strengths.
• Adhesives.
• Primers.
• Pipe-channel designs.
• Approved smoothing compounds.

The foil surface may also be pre-treated or pre-primed as part of the manufacturer's tested system.

The Floor Beneath the UFH Still Matters

Low-profile heating panels are thin and generally follow the surface underneath them.

They should not be used to hide a badly uneven structural floor.

Before the heating panels are installed, the original subfloor should already be:

• Structurally sound.
• Stable.
• Sufficiently flat.
• Clean.
• Suitable for the UFH panel fixing method.

If floorboards or sheet flooring move before the heating system is installed, installing routed panels on top does not remove that structural movement.

UFH Panels Must Be Secure Before Compound Is Poured

This is particularly important.

Fibre reinforcement does not mean that a smoothing compound can successfully bridge a panel that is flexing or lifting beneath it.

Before encapsulation:

• Panels should be fixed or bonded according to the UFH instructions.
• Panel joints should not move.
• Loose areas must be corrected.
• Wet pipework should be pressure-tested.
• Heating circuits should be confirmed before they disappear beneath compound.
• Floor probes should be fitted where specified.

Wunda specifically requires its Rapid Response panels to be securely bonded with no movement before levelling compound is poured and states that additional mechanical fixing may be required where movement remains.

Where Does Stopgap 700 Superflex Fit?

Stopgap 700 Superflex is the fibre-reinforced smoothing compound we generally prefer at WWFS for suitable flexible-substrate preparation.

F. Ball designs Stopgap 700 specifically for suitable plywood and other approved substrates, with an application range of approximately 2–10mm.

F. Ball also allows Stopgap 700 to encapsulate suitable wire-heating systems over plywood up to 10mm.

Its fibre reinforcement and practical working characteristics make it a particularly useful product within suitable timber-based floor constructions.

WWFS Preference: Stopgap 700

Where the UFH manufacturer permits a fibre-reinforced smoothing product and the actual substrate is suitable for Stopgap 700, this is normally our preferred option.

However, if the UFH manufacturer specifies another tested compound, primer or minimum depth, that system should be followed.

We would rather use a product that is technically approved for the complete construction than replace it simply because we normally prefer working with 700.

What About Stopgap 1600?

Stopgap 1600 is F. Ball's specialist product for encapsulating suitable water-fed and electric UFH systems and for deeper applications.

It has a broader depth range than Stopgap 700 and is specifically engineered around thermal cycling.

That does not mean it needs to be specified on every UFH project.

Where the approved substrate and required depth allow Stopgap 700, WWFS generally prefers Stopgap 700 from a practical installation perspective.

Where the heating-system or F. Ball specification requires 1600 or another product, follow that approved system.

Can You Lay Plywood over UFH Trays?

Sometimes — but plywood should not be treated as a universal alternative to levelling compound.

Plywood can provide a strong continuous load-spreading surface, but it also adds thermal resistance and changes the way the UFH system distributes heat.

Ambiente specifically advises against simply installing plywood over AmbiDeck because its levelling layer is an intended part of the heat-distribution system.

Nu-Heat LowBoard 2 demonstrates the opposite approach: it is deliberately manufactured with a structural cover board as part of the UFH construction.

When Plywood Is Useful

Plywood remains extremely useful for preparing existing timber subfloors before certain UFH systems are installed.

For example, where old floorboards are moving or uneven, suitable flooring-grade plywood may be used as part of the structural preparation before the heating panels are installed.

This is very different from placing plywood over an encapsulation-type UFH panel.

Direct Bonding Engineered Wood to UFH Panels

Some manufacturers now permit selected engineered wood flooring to be bonded directly to their heating panels.

Wunda, for example, currently lists an approved direct-bond route for suitable wood flooring using a specifically approved high-temperature adhesive.

This does not mean every flexible wood-floor adhesive can automatically be substituted.

Long Plank vs Herringbone

We would not treat these flooring formats in exactly the same way over routed heating panels.

Herringbone over Routed UFH

Fully bonded herringbone needs particularly consistent support.

Each individual block should receive predictable adhesive transfer and should not bridge a soft panel joint, open pipe channel or area of differing compressive strength.

For this reason, where a routed UFH system sits beneath engineered herringbone, WWFS would normally want a:

• Continuous surface.
• Rigid and stable receiving layer.
• Flat substrate.
• Load-spreading construction.
• Surface proven compatible with the selected wood-floor adhesive.

Current Wunda guidance specifically recommends an approved levelling-compound intermediate layer when installing small-format parquet such as herringbone and chevron over its Rapid Response system.

Electric Foil Heating Is Different

Electric foil heaters should not be confused with foil-faced hydronic trays.

The Warmup Foil Heating System, for example, is specifically designed beneath compatible floating floors such as engineered wood and laminate.

Warmup explicitly states that its standard Foil Heater should not be used beneath glued wooden flooring.

Where a glued wood floor is required, Warmup instead directs installers towards a heating cable or mat system that is encapsulated beneath approximately 10mm of self-levelling compound.

Never Glue Through an Electric Foil System

Adhesive should not be spread across a heating mat or foil system unless the manufacturer specifically designed and approved the system for that purpose.

Electrical safety, heat distribution and mechanical loading all need to be considered.

Floor Probes

Temperature sensing becomes particularly important where the heat source sits very close to the timber.

Install the floor probe according to the heating manufacturer's specification before the system is covered.

Wunda's current levelling route requires probes to be positioned at the upper surface of the levelling layer so they accurately sense the temperature being delivered towards the floor finish.

The control system should prevent the wooden floor exceeding the temperature specified by the flooring manufacturer — commonly 27°C for many engineered wood floors.

Do Not Use UFH to Dry Levelling Compound

Once a tray has been encapsulated, allow the smoothing compound to cure naturally according to its manufacturer's instructions.

Do not turn the heating on simply to speed up drying.

Rapid forced heating can create uneven drying and unwanted thermal stress within a fresh preparation layer.

Wunda explicitly requires its approved compounds to cure naturally before the UFH is gradually brought back into service.

Thermal Resistance

Every additional layer above the pipe affects heat transfer.

This includes:

• Smoothing compound.
• Plywood.
• Cement cover board.
• Wood-floor adhesive.
• Engineered timber.
• Underlay.

That does not mean the thinnest possible build-up is always best.

A 6–10mm load-spreading layer may be structurally essential to the tested UFH system even though it introduces some additional thermal resistance.

What Adhesive Should Be Used Above the Finished UFH Build-Up?

Once the UFH system has its approved load-spreading or structural receiving layer, the floor can be treated much more like a conventional heated subfloor.

For most suitable engineered flooring, Bona R848 is our normal starting recommendation.

For wider boards and more demanding installations, Bona Quantum is our higher-performance option.

The final receiving surface must still be compatible with the selected adhesive.

Complete Overlay-System Workflow

Common Mistakes

Assuming every routed panel is the same

Panel construction and approved floor build-ups vary substantially between manufacturers.

Automatically applying 6mm of compound

Current systems range from approximately 6mm to 10mm or more, while some have their own structural cover board.

Using Stopgap 700 simply because it is fibre reinforced

Stopgap 700 remains one of our preferred products where technically approved, but it is not automatically compatible with every foil-faced insulation panel.

Using generic plywood over every UFH tray

Plywood may interfere with a system designed to be encapsulated and will add thermal resistance.

Pouring compound over moving boards

The UFH panels and the floor beneath them must be stable first.

Forgetting to pressure-test the heating

Once the pipe is buried beneath a load-spreading compound and wood flooring, repairing it becomes considerably more disruptive.

Forgetting the floor probe

Install temperature sensors before the heating panel is permanently covered.

Direct bonding herringbone because plank is approved

Small parquet blocks place very different demands on the receiving substrate.

Turning the UFH on to dry the compound

Let the preparation products cure naturally.

WWFS Products for Preparing UFH Overlay Systems

Frequently Asked Questions

Our Final Recommendation

Low-profile UFH products change frequently and visually similar panels may have different approved floor constructions. Always obtain the latest installation guidance for the exact UFH system before specifying primer, smoothing compound, plywood, adhesive or engineered wood flooring. Where the UFH, flooring, smoothing-compound or adhesive manufacturers provide conflicting requirements, obtain written technical approval before proceeding.
